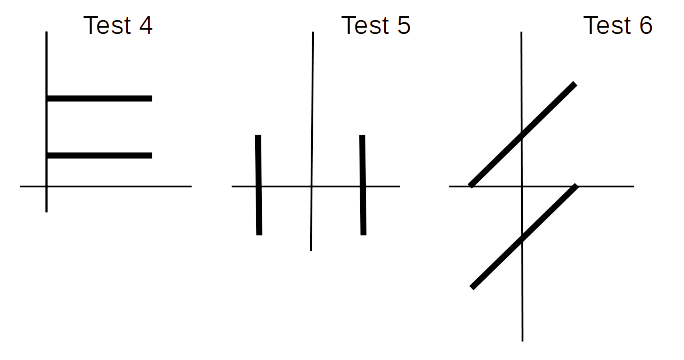

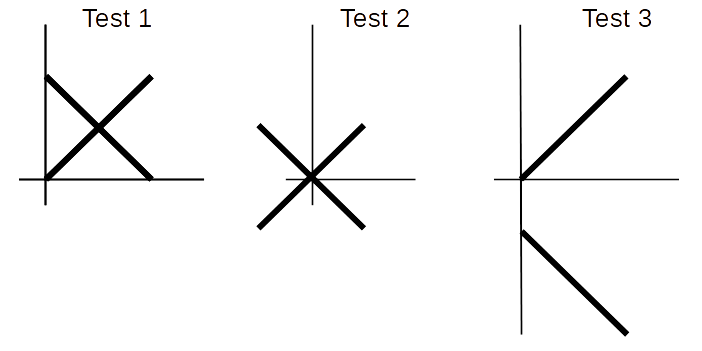

#!/usr/bin/python3 # =================================================================== # line segments define infinity lines. where do they intersect? # =================================================================== # From: stackoverflow.com/questions/20677795/ # how-do-i-compute-the-intersection-point-of-two-lines # =================================================================== # The challenge: This code's error testing and reporting is not # structured very well. See if you can do better? # =================================================================== import numpy as np import matplotlib.pyplot as plt # ------------------------------------------------------------------- # ---- find the intersection of two lines # ------------------------------------------------------------------- def find_intersection(l1,l2,title=''): p1,p2 = l1 p3,p4 = l2 x1,y1 = p1 x2,y2 = p2 x3,y3 = p3 x4,y4 = p4 try: px = ((x1*y2-y1*x2)*(x3-x4)-(x1-x2)*(x3*y4-y3*x4)) / \ ((x1-x2)*(y3-y4)-(y1-y2)*(x3-x4) ) py = ((x1*y2-y1*x2)*(y3-y4)-(y1-y2)*(x3*y4-y3*x4)) / \ ((x1-x2)*(y3-y4)-(y1-y2)*(x3-x4)) return (px, py) except Exception as e: print(f'{title} {e}') return None # -------------------------------------------------------------------- # ---- plot lines # -------------------------------------------------------------------- def plot_lines(l1,l2,i,title=None): # ---- plot x,y axes and grid plt.axhline(0,color='black') # x axis plt.axvline(0,color='black') # y axis plt.xlim(-20,20) plt.ylim(-20,20) plt.grid() # ---- display title if title is not None: plt.title(label=title,fontsize=20,color='black') # ---- plot line 1 x = np.array([ l1[0][0], l1[1][0] ]) y = np.array([ l1[0][1], l1[1][1] ]) plt.plot(x,y,color='black') plt.plot(x,y,'o',color='black') # ---- plot line 2 x = np.array([ l2[0][0], l2[1][0] ]) y = np.array([ l2[0][1], l2[1][1] ]) plt.plot(x,y,color='black') plt.plot(x,y,'o',color='black') # ---- plot intersection if i is not None: x = np.array([ i[0], ]) y = np.array([ i[1], ]) plt.plot(x,y,'o',color='red') # render plot plt.show() # ------------------------------------------------------------------- # ---- main # ------------------------------------------------------------------- if __name__ == '__main__': def results(i,title=None): if title is not None: print(title + ' ',end='') if i is None: print('lines do not intersect') else: print(f'lines intersect at {i}') # ---- test 1 t = 'Test 1' l1 = ((0,0), (10,10)) l2 = ((0,10),(10,0)) i = find_intersection(l1,l2) results(i,t) plot_lines(l1,l2,i,t) # ---- test 2 t = 'Test 2' l1 = ((-10,-10),(10,10)) l2 = ((-10,10),(10,-10)) i = find_intersection(l1,l2) results(i,t) ##plot_lines(l1,l2,i,t) # ---- test 3 t = 'Test 3' l1 = ((0,0),(10,10)) l2 = ((0,-5),(10,-10)) i = find_intersection(l1,l2,t) results(i,t) ##plot_lines(l1,l2,i,t) # ---- test 4 t = 'test 4' l1 = ((0,4),(10,4)) l2 = ((0,8),(10,8)) i = find_intersection(l1,l2,t) results(i,t) ##plot_lines(l1,l2,i,t) # ---- test 5 t = 'test 5' l1 = ((-5,-5),(-5,5)) l2 = ((5,-5),(5,5)) i = find_intersection(l1,l2,t) results(i,t) ##plot_lines(l1,l2,i,t) # ---- test 6 t = 'test 6' l1 = ((-5,0),(5,10)) l2 = ((5,0),(-5,-10)) i = find_intersection(l1,l2,t) results(i,t) plot_lines(l1,l2,i,t)
